TDK TAD2141 360° TMR Angle Sensor Combines 50,000 rpm Operation, High Accuracy, Flexible Interfaces, and ASIL-B Safety Support
As high-performance motors, servo drives, robotic joints, and automotive actuators continue to demand faster response, greater precision, and improved functional safety, angle sensors must do more than provide basic position feedback. They must maintain measurement accuracy at high rotational speeds while compensating for environmental variations, signal latency, magnetic-field changes, and system-level errors.

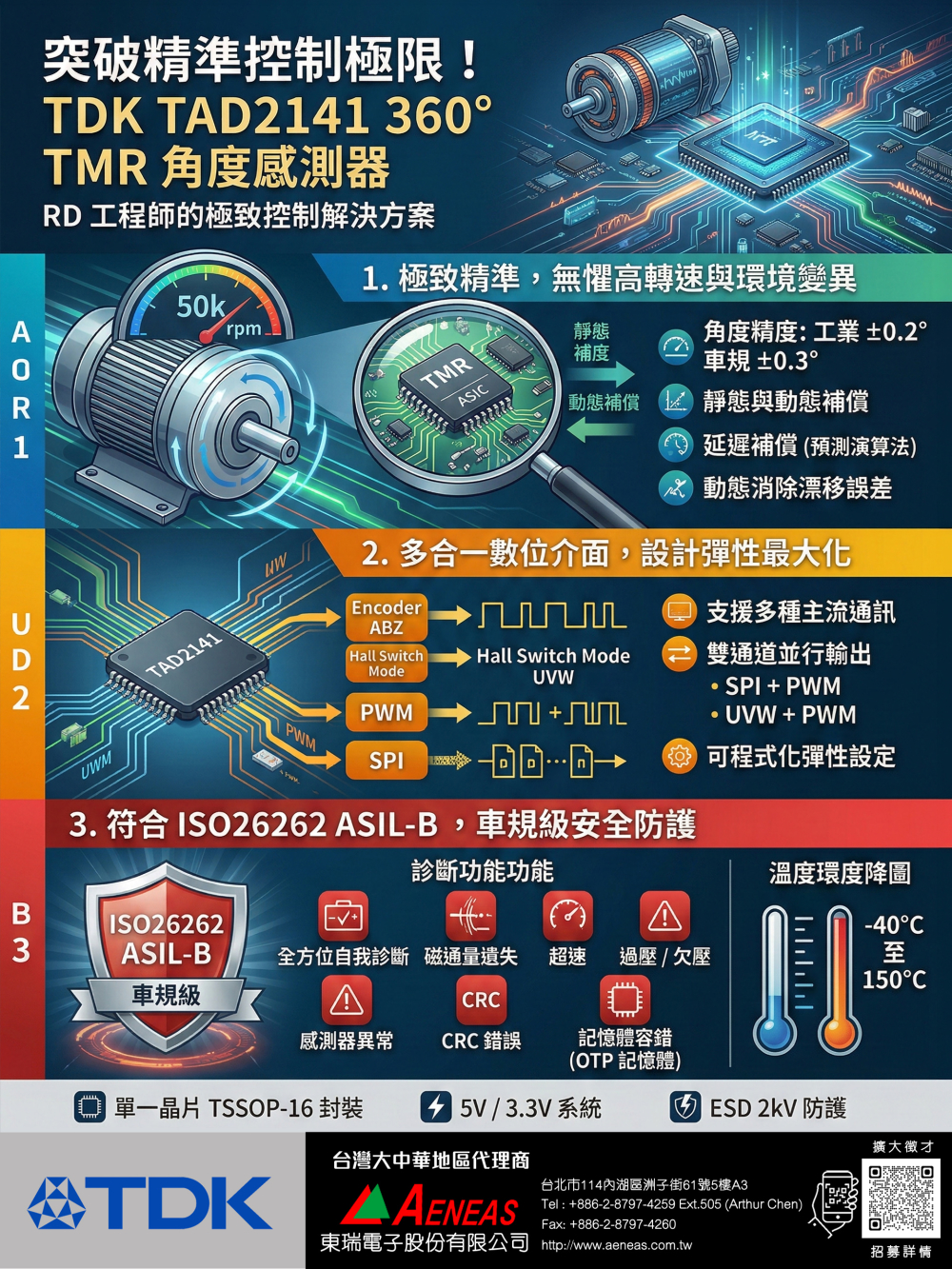

The TDK TAD2141 is a 360-degree TMR angle sensor that integrates high-precision angle processing, multiple digital output interfaces, static and dynamic compensation, and comprehensive diagnostic functions in a single-chip solution.
Designed for rotational speeds of up to 50,000 rpm, the TAD2141 provides angular accuracy of up to ±0.2 degrees for industrial applications and ±0.3 degrees for automotive applications. These capabilities make it suitable for motor control, actuator positioning, industrial automation, and other systems that require fast and accurate rotational feedback.
High-Accuracy Angle Measurement at Speeds Up to 50,000 rpm
Angle errors in high-speed motor systems can directly affect torque control, speed stability, positioning accuracy, and overall operating efficiency. As rotational speed increases, sensor latency and processing delay may introduce additional phase or position errors.
The TAD2141 combines a TMR sensing element with an integrated ASIC to provide several accuracy-enhancement functions, including:
● Industrial angular accuracy of up to ±0.2 degrees
● Automotive angular accuracy of up to ±0.3 degrees
● Rotational-speed support up to 50,000 rpm
● Static compensation
● Dynamic compensation
● Predictive delay compensation
● Dynamic drift-error cancellation
Static compensation helps correct fixed installation and sensor-characteristic errors, while dynamic compensation addresses variations that occur during rotation. Predictive delay compensation and dynamic drift correction help the controller receive more stable and timely angular information under changing speed and operating conditions.
ABZ, UVW, PWM, and SPI Interfaces Maximize Design Flexibility
Motor controllers, microcontrollers, and drive systems may require different types of position, speed, or commutation signals. The TAD2141 integrates several commonly used digital interfaces, allowing engineers to support different control architectures without redesigning the entire sensing platform.
Supported interface and output modes include:
● Encoder ABZ output
● Hall-switch-mode UVW output
● PWM angle output
● SPI digital communication
The device also supports simultaneous dual-channel output configurations, including:
● SPI plus PWM
● UVW plus PWM
These programmable output options allow developers to select the most appropriate configuration for the controller interface, real-time control requirements, system diagnostics, and signal-redundancy strategy.
For example, SPI can be used to retrieve detailed angle and status information, while PWM or UVW can provide a parallel real-time control signal. This architecture can improve integration flexibility and support additional diagnostic coverage at the system level.
ISO 26262 ASIL-B Support Strengthens Automotive Safety Designs
In automotive and other safety-related control systems, incorrect angle information can affect motor operation, actuator position, and overall control behavior. An angle sensor must therefore provide both accurate measurement and effective mechanisms for detecting internal, electrical, magnetic, and communication faults.
According to the product information, the TAD2141 supports ISO 26262 ASIL-B functional-safety requirements and integrates a broad set of diagnostic functions, including:
● Comprehensive self-diagnostics
● Magnetic-flux-loss detection
● Overspeed detection
● Overvoltage and undervoltage detection
● Sensor-abnormality detection
● CRC error checking
● OTP memory fault checking
These functions help the main controller identify sensing, power-supply, communication, and internal-memory faults. The system can then respond according to its safety strategy, such as issuing a warning, entering a degraded operating mode, or performing a controlled shutdown.
Wide-Temperature Operation and Single-Chip Integration Simplify Hardware Design
The TAD2141 supports an operating temperature range from -40°C to 150°C, enabling use in automotive, industrial motor, and other thermally demanding environments.
Additional integration features include:
● Support for 3.3V and 5V systems
● Single-chip sensing and signal-processing architecture
● TSSOP-16 package
● 2kV ESD protection
By integrating angle sensing, signal processing, compensation, communication, and diagnostics in one device, the TAD2141 can reduce the number of external components and simplify PCB design. Its TSSOP-16 package also supports practical integration into industrial and automotive electronics manufacturing processes.
Designed for Motors, Actuators, and Precision Rotational Control
With 360-degree sensing, high-speed operation, multiple interface options, and integrated safety diagnostics, the TAD2141 is suitable for evaluation in applications such as:
● Industrial motors and servo drives
● Robotic joints and rotary modules
● Electric actuators
● High-speed spindles and rotating equipment
● Automotive motor-control systems
● ABZ- or UVW-based commutation systems
● Precision automation equipment requiring angular feedback
● Rotational-position systems with functional-safety requirements
For development teams that must balance angular accuracy, high-speed performance, interface flexibility, and diagnostic coverage, the TDK TAD2141 provides a highly integrated 360-degree TMR angle-sensing solution.
