Application Block for Power Tool
- Stand-alone multi-cell (with Second Protection IC)
- Stand-alone multi-cell
- AFE (with Second Protection IC)
- AFE

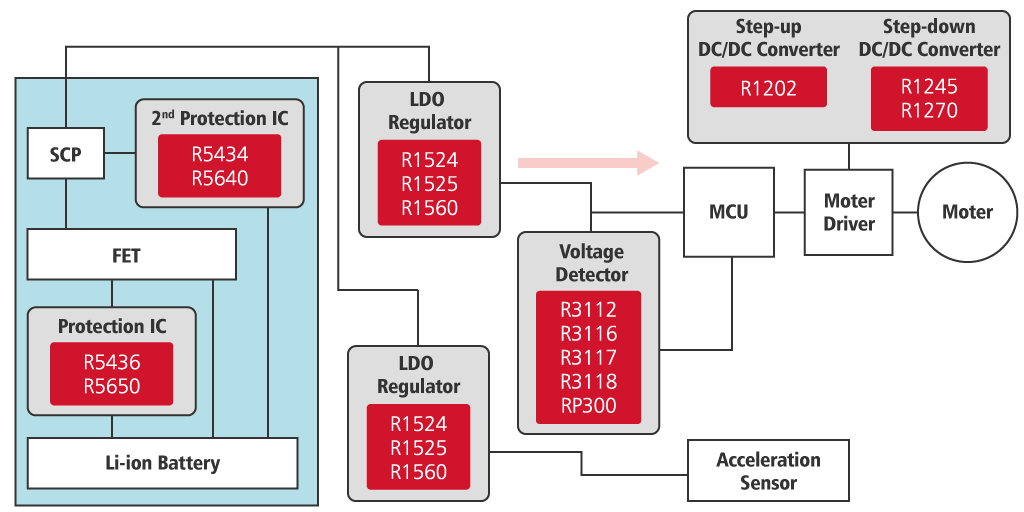

Stand-alone multi-cell (with Second Protection IC)
Recommended Items
| Product Name | Function | |
|---|---|---|
| Protection IC | R5436 | 3-Cell to 5-Cell Li-ion Battery Protection IC with Thermal Protection |
| Protection IC | R5650 | 3-Cell to 5-Cell Li-ion Battery Protection IC with Thermal Protection |
| 2nd Protection IC | R5434 | 2-Cell to 5-Cell Li-ion Battery Second Protection IC |
| 2nd Protection IC | R5640 | 2-Cell to 5-Cell Li-ion Battery Second Protection IC |
| LDO Regulator | R1524 | Low Supply Current 36V Input 200mA Voltage Regulator |
| LDO Regulator | R1525 | High Noise Immunity Low Supply Current 42V Input 200mA Voltage Regulator |
| LDO Regulator | R1560 | Low Supply Current 60V Input 100mA Voltage Regulator |
| Voltage Detector | R3112 | Voltage Detector with Delay Function |
| Voltage Detector | R3116 | 0.8% Accuracy 0.5V Operating Voltage Detector with Delay Function |
| Voltage Detector | R3117 | Voltage Detector with SENSE pin |
| Voltage Detector | R3118 | 0.6V Detect Voltage Detector with Delay Function and SENSE pin |
| Voltage Detector | RP300 | 0.8% Accuracy Voltage Detector with Delay Function (Internal Counter Type) |
| Step-up DC/DC Converter | R1202 | PWM Step-up DC/DC Converter for White LED/PMOLED and General Use with Shutdown Function |
| Step-down DC/DC Converter | R1245 | 1.2A 30V Input PWM Step-down DC/DC Converter |
| Step-down DC/DC Converter | R1270 | 3A 34V Input PWM/VFM Step-down DC/DC Converter with PLL Synchronization |

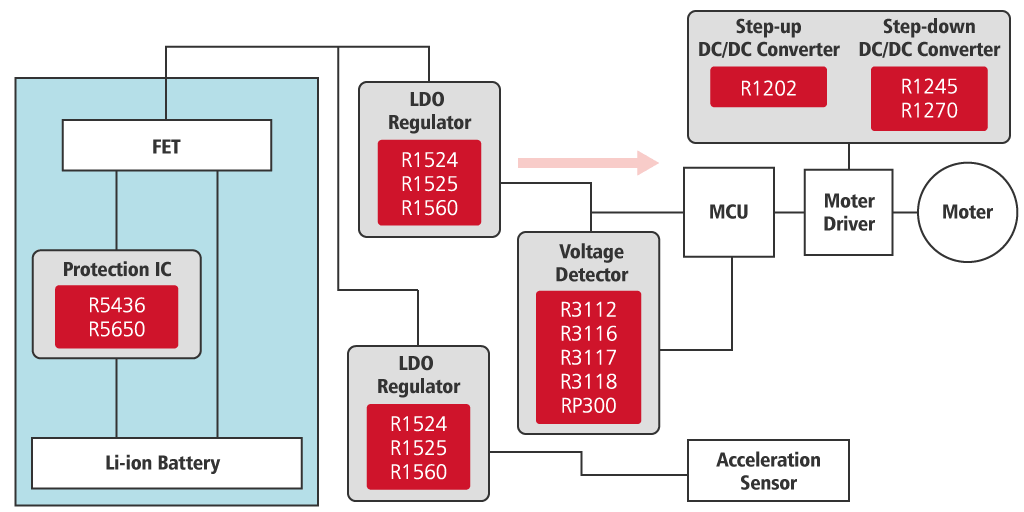

Stand-alone multi-cell
Recommended Items
| Product Name | Function | |
|---|---|---|
| Protection IC | R5436 | 3-Cell to 5-Cell Li-ion Battery Protection IC with Thermal Protection |
| Protection IC | R5650 | 3-Cell to 5-Cell Li-ion Battery Protection IC with Thermal Protection |
| LDO Regulator | R1524 | Low Supply Current 36V Input 200mA Voltage Regulator |
| LDO Regulator | R1525 | High Noise Immunity Low Supply Current 42V Input 200mA Voltage Regulator |
| LDO Regulator | R1560 | Low Supply Current 60V Input 100mA Voltage Regulator |
| Voltage Detector | R3112 | Voltage Detector with Delay Function |
| Voltage Detector | R3116 | 0.8% Accuracy 0.5V Operating Voltage Detector with Delay Function |
| Voltage Detector | R3117 | Voltage Detector with SENSE pin |
| Voltage Detector | R3118 | 0.6V Detect Voltage Detector with Delay Function and SENSE pin |
| Voltage Detector | RP300 | 0.8% Accuracy Voltage Detector with Delay Function (Internal Counter Type) |
| Step-up DC/DC Converter | R1202 | PWM Step-up DC/DC Converter for White LED/PMOLED and General Use with Shutdown Function |
| Step-down DC/DC Converter | R1245 | 1.2A 30V Input PWM Step-down DC/DC Converter |
| Step-down DC/DC Converter | R1270 | 3A 34V Input PWM/VFM Step-down DC/DC Converter with PLL Synchronization |

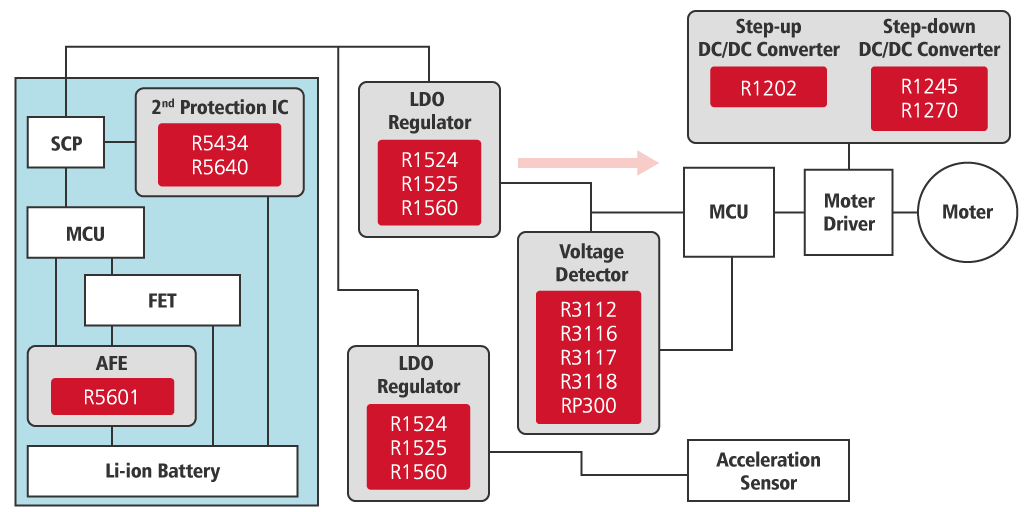

AFE (with Second Protection IC)
Recommended Items
| Product Name | Function | |
|---|---|---|
| AFE | R5601 | 3-Cell to 5-Cell Li-ion Battery Management Analog Front-End IC |
| 2nd Protection IC | R5434 | 2-Cell to 5-Cell Li-ion Battery Second Protection IC |
| 2nd Protection IC | R5640 | 2-Cell to 5-Cell Li-ion Battery Second Protection IC |
| LDO Regulator | R1524 | Low Supply Current 36V Input 200mA Voltage Regulator |
| LDO Regulator | R1525 | High Noise Immunity Low Supply Current 42V Input 200mA Voltage Regulator |
| LDO Regulator | R1560 | Low Supply Current 60V Input 100mA Voltage Regulator |
| Voltage Detector | R3112 | Voltage Detector with Delay Function |
| Voltage Detector | R3116 | 0.8% Accuracy 0.5V Operating Voltage Detector with Delay Function |
| Voltage Detector | R3117 | Voltage Detector with SENSE pin |
| Voltage Detector | R3118 | 0.6V Detect Voltage Detector with Delay Function and SENSE pin |
| Voltage Detector | RP300 | 0.8% Accuracy Voltage Detector with Delay Function (Internal Counter Type) |
| Step-up DC/DC Converter | R1202 | PWM Step-up DC/DC Converter for White LED/PMOLED and General Use with Shutdown Function |
| Step-down DC/DC Converter | R1245 | 1.2A 30V Input PWM Step-down DC/DC Converter |
| Step-down DC/DC Converter | R1270 | 3A 34V Input PWM/VFM Step-down DC/DC Converter with PLL Synchronization |

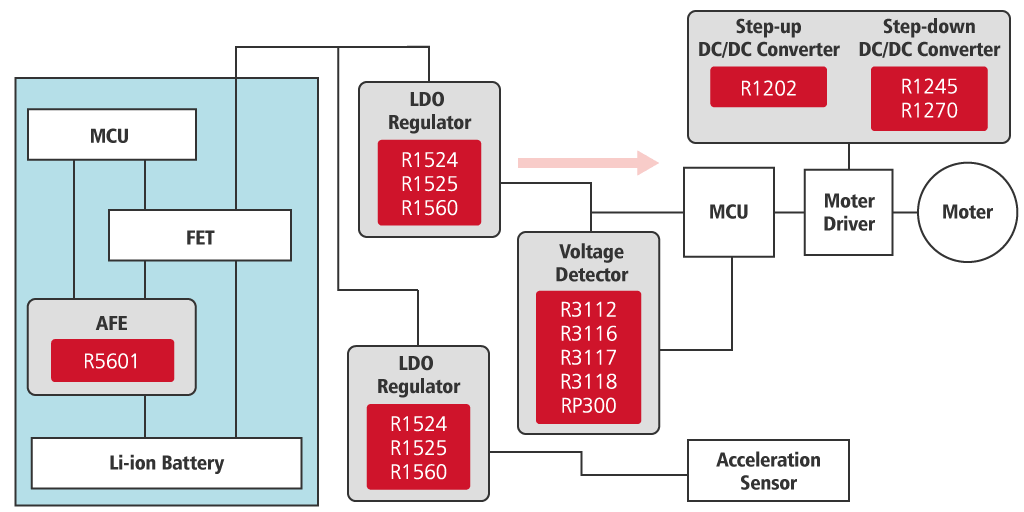

AFE
Recommended Items
| Product Name | Function | |
|---|---|---|
| AFE | R5601 | 3-Cell to 5-Cell Li-ion Battery Management Analog Front-End IC |
| LDO Regulator | R1524 | Low Supply Current 36V Input 200mA Voltage Regulator |
| LDO Regulator | R1525 | High Noise Immunity Low Supply Current 42V Input 200mA Voltage Regulator |
| LDO Regulator | R1560 | Low Supply Current 60V Input 100mA Voltage Regulator |
| Voltage Detector | R3112 | Voltage Detector with Delay Function |
| Voltage Detector | R3116 | 0.8% Accuracy 0.5V Operating Voltage Detector with Delay Function |
| Voltage Detector | R3117 | Voltage Detector with SENSE pin |
| Voltage Detector | R3118 | 0.6V Detect Voltage Detector with Delay Function and SENSE pin |
| Voltage Detector | RP300 | 0.8% Accuracy Voltage Detector with Delay Function (Internal Counter Type) |
| Step-up DC/DC Converter | R1202 | PWM Step-up DC/DC Converter for White LED/PMOLED and General Use with Shutdown Function |
| Step-down DC/DC Converter | R1245 | 1.2A 30V Input PWM Step-down DC/DC Converter |
| Step-down DC/DC Converter | R1270 | 3A 34V Input PWM/VFM Step-down DC/DC Converter with PLL Synchronization |
