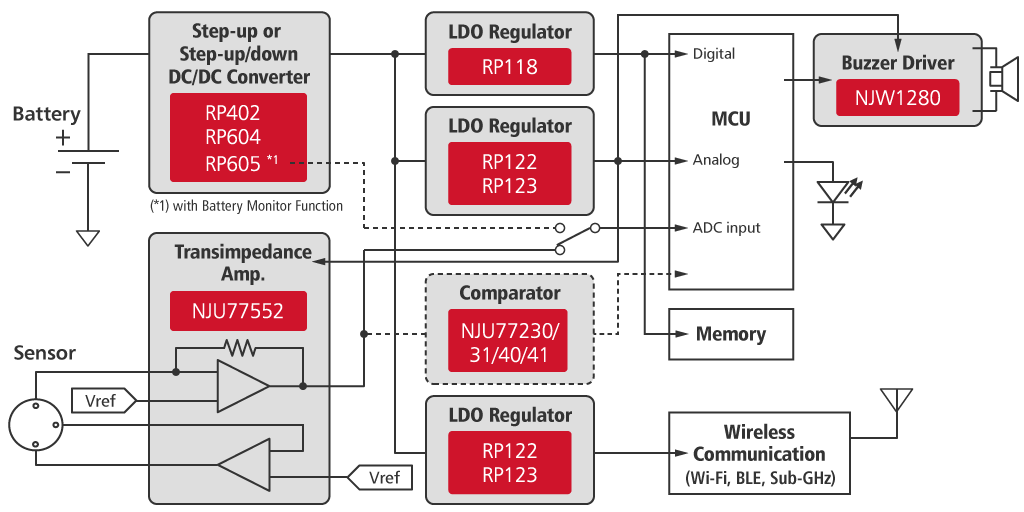

Application Block for Battery-powered Gas Leak Detector
High-efficient DCDC converter under light load, low power consumption LDO and Op-amp make battery operation longer and reduce battery size. High-accuracy sensing with low noise and high PSRR LDO.
Recommended Items
| Product Name | Function |
|---|---|
| RP402 | PWM/VFM Step-up DC/DC Converter with Synchronous Rectifier |
| RP604 | 0.3µA IQ Low Quiescent Current 300mA Buck-Boost DC/DC Converter with Synchronous Rectifier |
| RP605 | Low Power Consumption 300mA Buck-Boost DC/DC Converter with Battery Monitor |
| RP118 | 100mA Low Supply Current 0.2µA LDO Regulator |
| RP122 | Low Noise and Low Supply Current 400mA LDO Regulator |
| RP123 | Low Noise and Low Supply Current 250mA LDO Regulator |
| NJU77552 | 1.7MHz, 50µA/ch, Excellent EMI Immunity, Rail-to-Rail Input/Output, Operational Amplifier |
| NJU77230 | Rail-to-Rail Input Push-Pull Output Low power CMOS Comparators |
| NJU77231 | Rail-to-Rail Input Push-Pull Output Low power CMOS Comparators |
| NJU77240 | Rail-to-Rail Input Open-Drain Output Low power CMOS Comparators |
| NJU77241 | Rail-to-Rail Input Open-Drain Output Low power CMOS Comparators |
| NJW1280 | High Capacitance Piezo-sounder Driver with charge pump |
