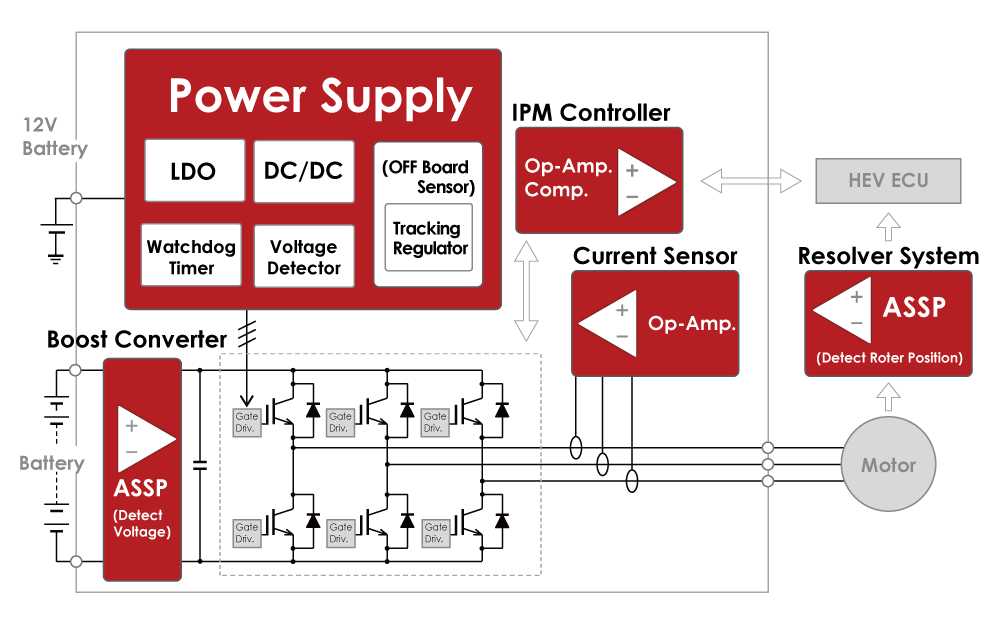

Application Block for Power Control Unit (PCU)
Recommended Items
Operational Amplifier
| Product Name | Function |
|---|---|
| NJM8208 | 2 Precision, Single Supply, Rail-to-Rail Output Dual Operational Amplifier |
| NJM8532 | 14V, Low Noise, Low Power, Rail-to-Rail Input/Output, Operational Amplifier |
| NJU7077 | Precision, Low Noise, Rail-to-Rail Output, Excellent EMI Immunity, CMOS Operational Amplifiers |
Comparator
| Product Name | Function |
|---|---|
| NJM2903 | Single-Supply Dual Comparator |
| NIJ77242 | Rail-to-Rail Input Open-Drain Output Low power CMOS Comparators |
ASSP
| Product Name | Function |
|---|---|
| NJU77903 | High Output Current, Rail-to-Rail Input/Output Single CMOS Operational Amplifiers |
| NJU7870 | Amplifier for resolver excitation |
| NJU7890 | 1000V High Voltage Monitor IC |
(LDO) Power Supply IC
| Product Name | Function |
|---|---|
| NJM12884 | LDO with Reverse Current Protection / Soft Start / Discharge Function |
| NJM2879 | LDO with Reverse Current Protection / Discharge Function |
| NJW4182 | High Voltage Ultra low current consumption Io=100mA LDO |
| R1560 | Low Supply Current 60V Input 100mA Voltage Regulator |
| R1561 | 60V Input 100mA Voltage Regulator |
| R1524 | Low Supply Current 36V Input 200mA Voltage Regulator |
| R1525 | High Noise Immunity Low Supply Current 42V Input 200mA Voltage Regulator |
| R1526 | High Noise Immunity 42V Input 300mA Voltage Regulator |
| <a href="https://www.nisshinbo-microdevices.co.jp/en/products/ldo-linear-regulator/spec/?product=r1517"" target="new"> R1517 | 36V Input 500mA Low Supply Current Voltage Regulator |
| R1518 | 36V Input 1A Low Supply Current Voltage Regulator |
(DC/DC) Power Supply IC
| Product Name | Function |
|---|---|
| NJW4152BA | Switching Regulator IC for Buck Converter with 40V/600mA MOSFET |
| R1260 | 60V Input / 80V Absolute Maximum Rating Synchronous Step-down DC/DC Controller< |
| R1271 | 30 V, 1 A Synchronous PWM Step-down DC/DC Converter |
| NJW4140 | MOSFET Drive Switching Regulator IC for Boost / Fly-back Converter |
(Tracking Regulator) Power Supply IC
| Product Name | Function |
|---|---|
| R1540 | High Noise Immunity 42V Input 70mA Voltage Tracker |
(Voltage Detector, Watchdog Timer) Power Supply IC
| Product Name | Function |
|---|---|
| R3152 | 42V Input Window Voltage Detector |
| R3154 | 42 V Input Window Voltage Detector with Diagnostic Function |
| R3119xxxxA | 36V Input Voltage Detector with Delay Function or SENSE pin |
| R3119xxxxE | 36V Input Voltage Detector with Delay Function or SENSE pin |
| R3121xxxxA | 36V Input Voltage Detector with Release Delay Function |
| R3121xxxxE | 36V Input Voltage Detector with Release Delay Function |
| R3160 | Low Supply Current 60V Input Voltage Detector |
| R5116 | 42V Input Voltage Regulator with Window Voltage Detector |
| R5117 | 42V Input Voltage Regulator with Window Voltage Detector |
| R5110 | 36V Input System Power Supply with Watchdog Timer |
| R5114 | Low Supply Current 42V Input System Power Supply with Watchdog Timer |
| R5115 | Low Supply Current 42V Input System Power Supply with Window-type Watchdog Timer |
