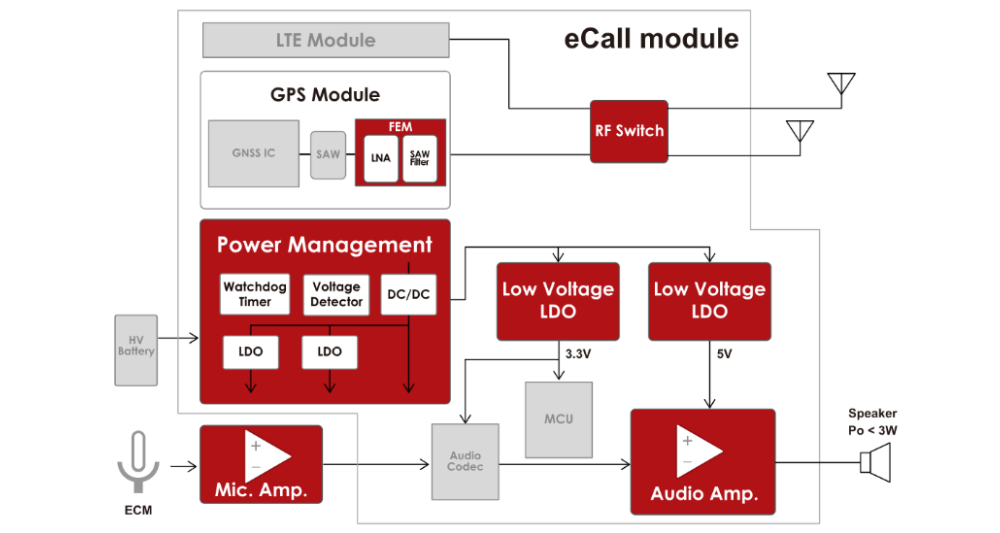

eCall
Power Management
LDO
| Product Name | Features |
|---|---|
NJM11100 |
Adjustable Low Dropout Regulator with Reverse Current Protection |
NJM12884 |
LDO with Reverse Current Protection / Soft Start / Discharge Function |
NJW2897 |
LDO with Reverse Current Protection / Discharge Function |
NJW4104 |
45V Io=200mA Ultra low Quiescent current LDO |
NJW4105 |
High Voltage Io=500ma LDO Regulator |
NJW4106 |
High Voltage Io = 500 mA Adjustable LDO Regulator |
NJW4107 |
45V Io=300mA LDO |
R1524 |
Low Supply Current 36V Input 200mA Voltage Regulator |
R1525 |
High Noise Immunity Low Supply Current 42V Input 200mA Voltage Regulator |
R1526 |
High Noise Immunity 42V Input 300mA Voltage Regulator |
RP108 |
Low Voltage 3A LDO Regulator with Reverse Current Protection |
RP130 |
Low Noise 150mA LDO Regulator |
RP154 |
Low Voltage Dual 300mA LDO Regulator |
DC/DC
| Product Name | Features |
|---|---|
NJW1871 |
MOSFET Drive Switching Regulator IC for Boost / Fly-back Converter |
NJW4132 |
Switching Regulator IC for Boost Converter Current Mode Control with 45V/1.75A MOSFET |
NJW4133 |
2.4MHz, 45V, 5A MOSFET Switching Regulator IC for Boost Converter |
NJW4140 |
MOSFET Drive Switching Regulator IC for Boost / Fly-back Converter |
NJW4142 |
MOSFET Drive Switching Regulator IC for Boost / Fly-back Converter |
NJW4171 |
2.4MHz, 2.5A MOSFET Switching Regulator IC for Buck Converter |
R1270 |
3A 34V Input PWM/VFM Step-down DC/DC Converter with PLL Synchronization |
R1271 |
30 V, 1 A Synchronous PWM Step-down DC/DC Converter |
R1276 |
3A 30V Input Step-down DC/DC Converter with Synchronous Rectifier |
R1278 |
30 V, 2 A Synchronous PWM Step-down DC/DC Converter |
RP506 |
2A PWM/VFM Step-down DC/DC Converter with Synchronous Rectifier |
RP510 |
4A Forced PWM Step-down DC/DC Converter with Synchronous Rectifier |
Voltage Detector/ Watchdog Timer
| Product Name | Features |
|---|---|
R3121xxxxA |
36V Input Voltage Detector with Release Delay Function |
R3121xxxxE |
36V Input Voltage Detector with Release Delay Function |
R3152 |
42V Input Window Voltage Detector |
R3154 |
42 V Input Window Voltage Detector with Diagnostic Function |
R3500 |
42 V Input 4ch Window Voltage Detector with Diagnostic Function |
R5106 |
Watchdog Timer Equipped with Inhibit Pin with VDn |
R5110 |
36V Input System Power Supply with Watchdog Timer |
R5111 |
36V Input System Power Supply with Watchdog Timer |
R5112 |
Low Supply Current 42V Input 200mA Voltage Regulator with VD |
R5114 |
Low Supply Current 42V Input System Power Supply with Watchdog Timer |
R5115 |
Low Supply Current 42V Input System Power Supply with Window-type Watchdog Timer |
R5116 |
42V Input Voltage Regulator with Window Voltage Detector |
R5117 |
42V Input Voltage Regulator with Battery Voltage Detector |
RF Device
RF Switch
| Product Name | Features |
|---|---|
NJG1802K51 |
High Power SPDT Switch GaAs MMIC |
NJG1159PHH-A |
GNSS Front-End Module |
Front-End Modules
| Product Name | Features |
|---|---|
NJW4830 |
Single High Side Switch |
Audio Amplifier
Microphone Amplifier
| Product Name | Features |
|---|---|
NJU7907A |
Monaural Microphone Amplifier |
NJU72097 |
Fine Tune Sensitivity 2-wired Monaural Microphone Amplifier with Regulator for Microphone Capsule |
Power Amplifier
| Product Name | Features |
|---|---|
NJU7089 |
High-Power & Low-Voltage Audio Power Amplifier |
NJU72060 |
500mW Monaural Speaker Amplifier |
Class D Amplifier
| Product Name | Features |
|---|---|
NJU8759A |
Analog Signal Input Monaural Filter Less 3W Class-D Amplifier |
(Source： Nisshinbo Micro Devices Inc.，eCall )
